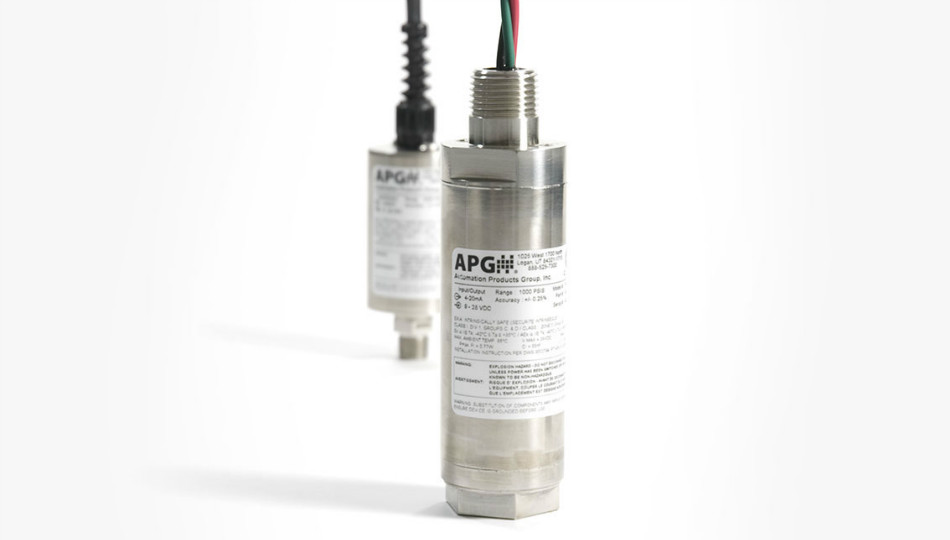

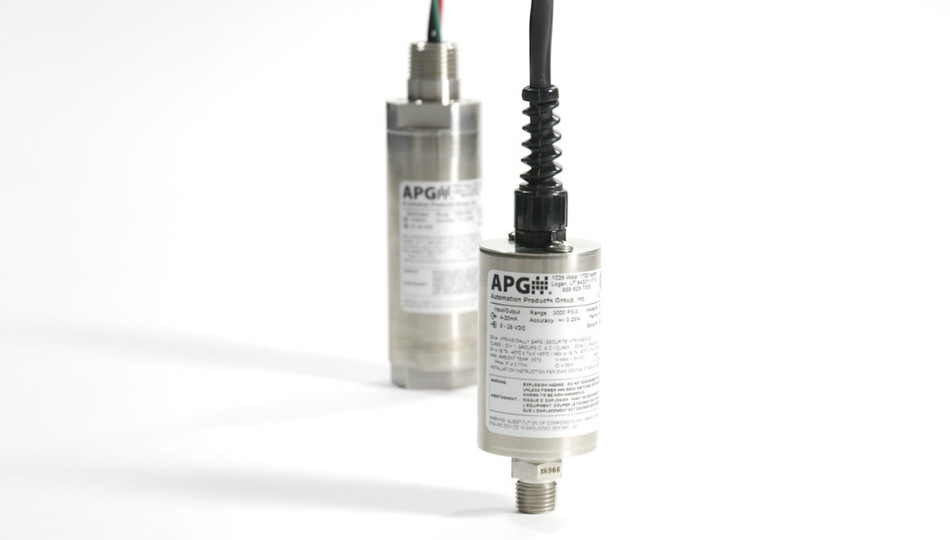

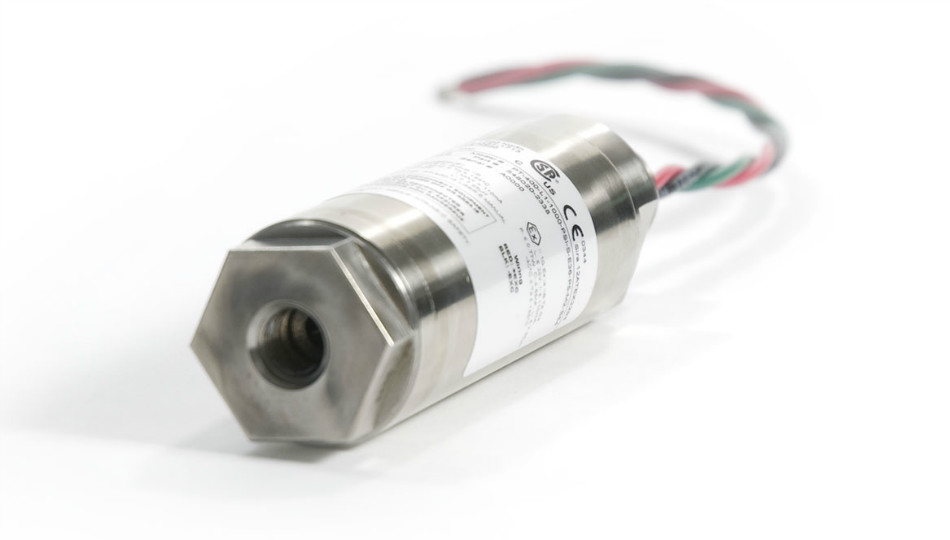

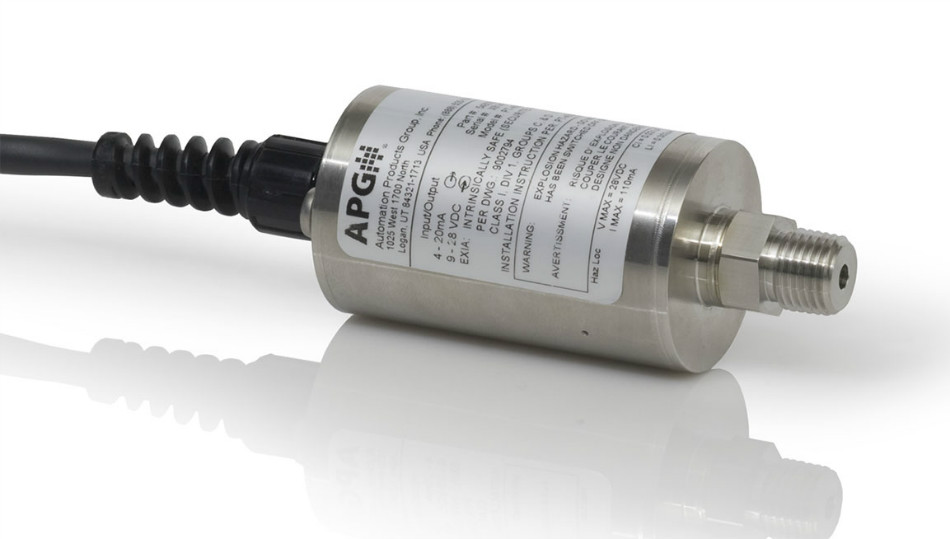

방폭 압력센서(4~20mA, Modbus)
고압, 고온, 고진동 및 다습한 환경에 사용하기 적절함
Description
넓은 온도범위 : -40℃ ~ 85℃, 방진방습 IP67등급, 4~20mA, 0~5V, 0~10V, Modbus/RTU output.
ATEX, ICEEx, CSA 방폭등급.
Specifications
Performance- Pressure Range
- Up to 20,000 psi
- Accuracy
- B.F.S.L. ≤ 0.25% of full scale
- NIST up to ±0.1% available in select ranges
- 1 year stability ≤ 0.5% of full scale
- Temperature Compensation Range
- Up to -40 to 180° F (-40 to 82° C)
- Frequency Response
- Less than 5mS
Programming- Adjustments
- Zero and Span
Electrical- Input Voltage
- 4-20mA Version: 10-28 VDC
- 0-5 VDC Version: 9-28 VDC
- 0-10 VDC Version: 12.5 to 28 VDC
- Protection
- Reverse polarity, surge
Physical- Material
- 316L SS
- 17-4 SS
- Weight
- 10 oz. (283 g)
Approvals- CSA Intrinsically Safe
- 4-20mA
- Class I, Div. 1, Groups C & D
- Class I, Zone 0, Group IIB
- 0-5 VDC, 0-10 VDC, 4-20mA
- Class I, Div. 2, Groups C & D
- Class I, Zone 2, Group IIB
- ATEX
- 4-20mA
- Ex II 1G Ex ia IIB T4 Ga
- IECEx
- 4-20mA
- Ex ia IIB T4 Ga
- Modbus RTU version does not have hazloc approvals
Connectivity- Outputs
- 4-20mA
- 0-5 VDC
- 0-10 VDC
- Modbus RTU
- Internet Connectivity
- Tank Cloud Compatible (Modbus version)
Environmental- Operating Temperature
- -40 to 180° F
|
|
|
| |
|
| |
|
|
